2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage

This instruction show you guide on 2 ways to repair Tesla Models 3 16V battery dead low voltage.



Tesla Model S Service Manuals



Try use a self-made light to test the voltage,you found light off mean there is no voltage or enough voltage.

2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage (1)

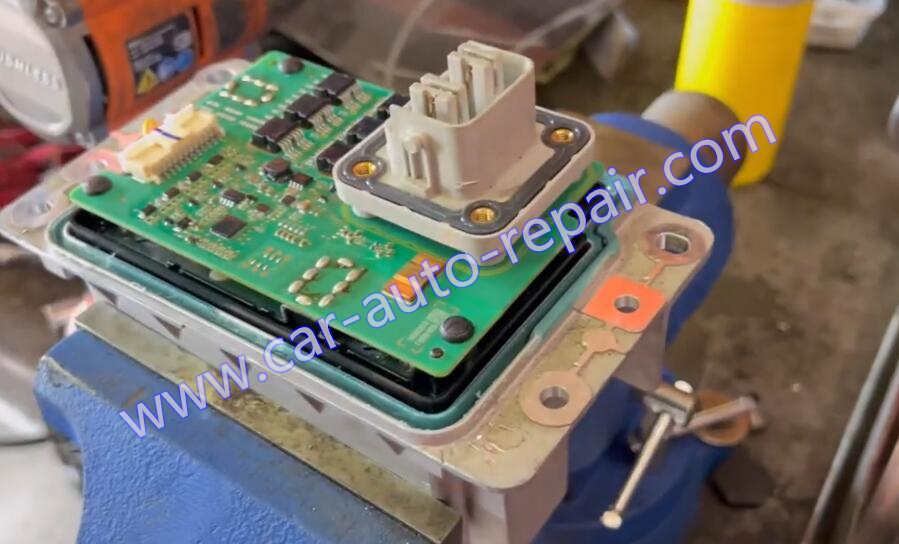

Open the cover

2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage (2)

Use a multi-meter to test the voltage only 2V

2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage (3)

Charge the battery

2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage (4)

Wait the voltage up to about 16V

2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage (5)

And the main plugs show the voltage is about 14V

2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage (6)

Put the battery back to car to set it

2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage (7)



Method 2:

If you find it still can not work,remove the PCB

And solder the wire

2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage (8) 2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage (9)



Then read out and save the original file,and write a new file into

2 Ways to Repair Tesla Model 3 16V Battery Dead Low Voltage (10)

Done.
