BMW E70 E71 Video In Motion Coding by NCS Expert

This article show you the guide on how to use BMW NCS Expert software to coding video in motion feature for BMW E70 and E71.And if you want to check more video in motion guide,please check here:Video In Motion Coding Guide



Preparations:

NCS Expert BMW Coding Software Download



Procedures:

Run NCS Expert software

Create fsw psw man

Select File–>Load profile–>Expertmode–>OK

Select File–>Edit profile,then input password “repxet”

Select “Car Memory”,then tick the options as below

Click “Consistency check”,then it will prompt with below window massage,click “OK” to continue

Then tick the options:

FSW-/PSW-Trace

FSW-/PSW-Mainpulate with FSW_PSW.MAN

And make sure you have selected “from CVT”,then click “OK” to continue

Click “Consistency check”,then click “OK” to continue

Select File–>save profile as–>FZG4.PFL (rename this file name by manually),click “OK” button to save the file.

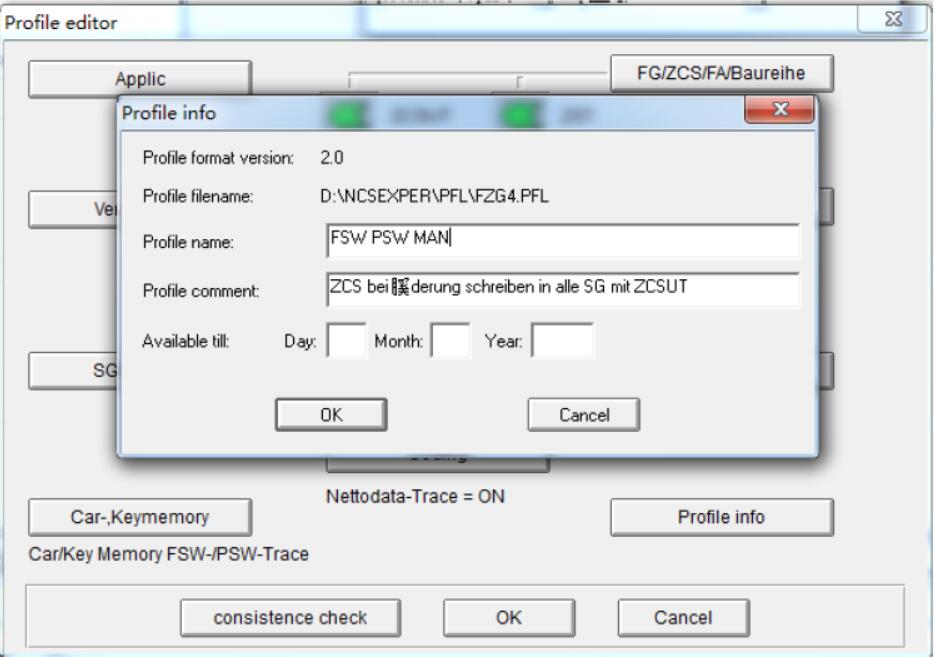

Select File–>edit profile–>input password “repxet”–>profile info

Then rename the profile name as “FSW PSW MAN”

Now you have created FSW PSW MAN file successfully.



When you are performing coding,you need to select “fsw psw man” file you created just now.

Load “fsw psw man”,select “File”–>Load profile–>”fsw psw man” show as below

Press the “F2” on your keyboard,select vehicle chassis number

Select “E70”,then click “OK” to continue

Now click “VIN/ZCS/FA” or press “F1”

Select “F3” to read FG,FA

Now it will show the FG,FA on the NCS Expert

Click “F6” button to read all modules data,here recommend you to make backup (FSW PSW,TRC)

Click “F4” (Process ECU),select “CIC” and click “OK” to continue

Click “F4” (Process ECU),then it will prompt you with below screen,just close it

Make backup of work data (FSW PSW.TRC),this is CIC modules data,you can create a new folder to save this file

Open FSW PSW.TRC to modify below data,then save this file to cover original (not backup file)

Back to NCS Expert software to check the file name show as below

Then go to C:\NCSEXPER\DATEN\E70 to select CIC.C1A,and backup this CIC.C1A file

Run data2txt14022011.exe

File–>Open to select CIC.C1A,and locate below position

Modify both (03) behind 0636 to FF

Then select File–>procedure cXX,now use this CIC.C1A to cover original file

Back to NCS,press F5(basic function),select “coapiReadSgGetFswPsw”

Click “F2(Job)”,select SG_CODIEREN,and then click “OK”

Now click “F3(Execule job)”

Done!
