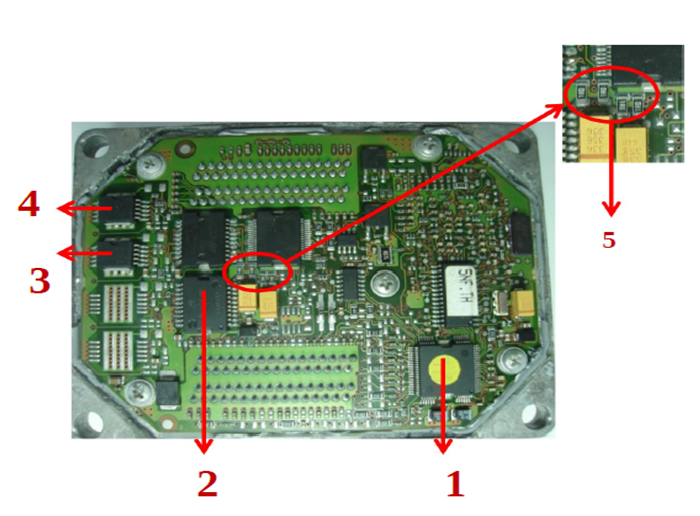

Main components

1. 5V regulator, electric fan;
2. Electronic accelerator, MC33;
3. Coil;
4. Coil;
5. Set of 4 protection resistors of drive no2 (1?).

More ECU PINOUT Components:

ECU Modules Repair Pinpout & Components

Technical specifications Common defects

Loss of acceleration – tele-loading or motor drive of step.

Note: This 5NF ECU before tele loading we must remove the eprom 95160 for that perform the necessary programming and boot services. If you do not remove the eprom 95160 and execute programming ECU crashes and repair is no longer possible.
