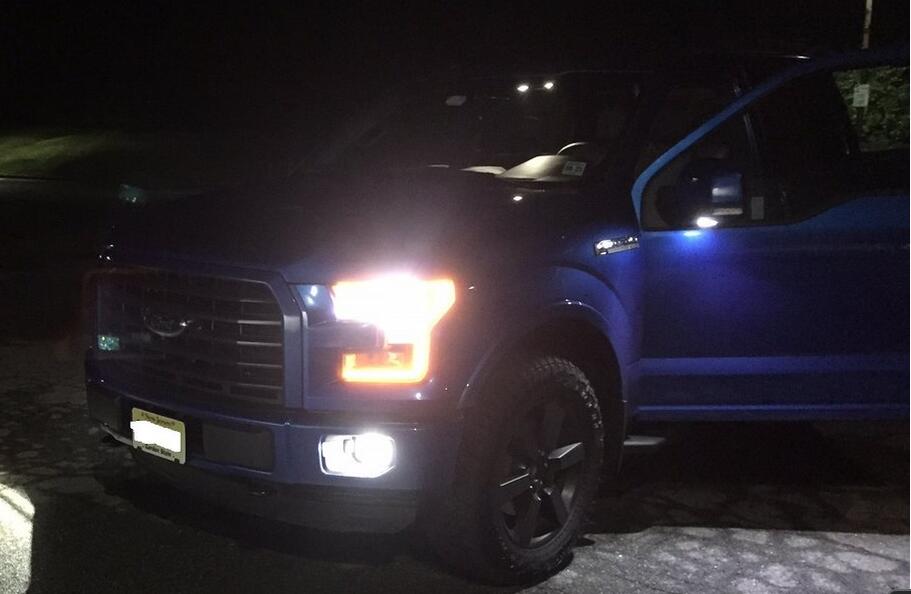

Ford F150 Halogen to OEM LED Headlights Retrofit Guide

This post show a guide on how to retrofit Ford F150 halogen to OEM LEM headlights,and reprogram parameter by FORScan.

Note:This post original write up by Ryan B from f150forum.com,and big thanks to all members that contribute for this project.



Ford Part Numbers for 2015-2017 trucks:
GL3Z-13008-E (Black Housing, Passenger Side)
GL3Z-13008-F (Black Housing, Driver Side)
FL3Z-13C170-A (Ballast, 2 Required)
W715133-S900 (Ballast Screws, 6 Required)

Ford Part Numbers for 2018+ trucks:
JL3Z-13008-B (Black Housing, Driver Side)
JL3Z-13008-H (Black Housing, Passenger Side)
FL3Z-13C170-A (Ballast, 2 Required)
W715133-S900 (Ballast Screws, 6 Required)

On all 2015+ F150’s each OEM LED headlight needs 7 wires to function correctly; Low Beam, High Beam, DRL, Turn, Running Light, Turn Outage, Ground. A truck with Halogen lights will have 5 of those 7 wires already at each headlight. The DRL and Turn Outage wires must be added to connector 2280F at the BCM and then run to each headlight for factory operation.

Adding the missing wires to the BCM:
I made a harness of 4 wires wrapped in Tesa Tape and terminated with the BCM terminals on one end. The two wires for the passenger side should be at least 7.5ft long and the wires for the driver side should be at least 15ft long. It’s important to use 4 different colors of wire to keep track of what goes where. For C2280F, you need to use either DU2Z-14474-AA pigtails or TE Connectivity terminals P/n: 1924955-3 .

Pulling wires through the firewall:
After the harness was made, I used a coat hanger that was sharpened on one end to pull the wire through the grommet on the passenger side of the firewall. I went from the engine compartment into the cab through the big grommet, this is the hard way. The easier way is to pull down the fender liner on the passenger side and use one of the smaller, single wall grommets.

Re-pinning the 2280F Connector is tricky because Ford didn’t leave much slack to work with. The best way I found to get room to work was to remove the trim piece under the blower motor, its held on by two push pins by the glove box hinge. The 2280F connector itself is made up of two terminal blocks inside a housing. One block has pins 1-20 and the second is 21-40. There is a little tab on either side of the housing you depress to slide the terminal blocks out.

Rear Daytime Running Lights (only applies to 2018+): On 2018 Halogen trucks, pins 36 and 40 will already be populated with wires. Those wires run from the BCM to the taillights to power Rear DRLs which use a second filament inside the Stop Lamp bulb. However, in the stock configuration, the Rear DRLs never illuminate, regardless of the Headlight switch setting. Also, the BLIS/LED taillights do not have any provisions for a rear DRL at all. You need to de-pin existing wires and insert the new wires into the connector.

Wires that need to be added (Colors are mine):
Left Turn Outage – Pin #6 (White)
Left DRL – Pin #40 (Black)
Right Turn Outage – Pin #17 (Red)
Right DRL Pin – #36 (Yellow)

Engine Bay:
Remove the headlights, then start to run the new harness in the engine bay. I put the Tesa Tape wrapped harness in plastic wire loom and ran it under the fuse box and around the battery following the other harness and pulled it out behind the Right Head light. Then I took the two wires for the Left headlight and ran them across the top of the grille to the other side. I hid them under the plastic radiator trim cover making sure to keep the wires away from the shutters.

Wiring the Headlights:
You have a few options here. I fully committed to this, so I cut off all four of the halogen connectors and used Molex 33472-1601 Female connectors and crimped new terminals Molex 330122003 onto the existing truck wires. If you don’t have a crimp tool, you can use Motorcraft WPT-1279 pigtails and butt connectors.

Or you can make a PnP harness using the below parts:
Qty 2: Molex 33472-1601 (Female Connector)
Qty 14: Molex 330122003 (Female Terminals for 33472-1601)
Qty 2: Molex 33481-0401 (Male Connector for the LO and HI Beam lamps)
Qty 6: Molex 330000003 (Terminals for 33481-0401)
Qty 2: 3156/3157 Bulb Adapters (These mate with the turn signal and parking light connector).
Qty 2: Standard Motor Products S-874 This is the intermediary piece between the bulb adapters and the turn/park connector. You can reuse the ones off your halogen lights or get these.

The only tricky part with this setup will be wiring the 3156/3157 bulb adapters. They are not standard in terms of which contacts go to which wire color. If your parking lights and turn signals do not work after you install it, you’d need to remove the plug from the socket, flip it over, and then re-insert it.

For 2015-2017 Trucks the wiring is as follows:
The Right headlight connector gets pinned as follows:
Pin 1 – Yellow/Violet
Pin 2 – Red
Pin 3 – Blue/Gray
Pin 4 – Yellow
Pin 5 – Blue/Green
Pin 6 – Violet/Orange
Pin 7 – Black/Gray

The Left Headlight is not the same, but similar:
Pin 1 – Blue/Green
Pin 2 – White
Pin 3 – Blue/Gray
Pin 4 – Black
Pin 5 – Brown/Blue
Pin 6 – Gray/Brown
Pin 7 – Black/Yellow

For 2018+ Trucks the wiring is as follows:
The Right headlight connector gets pinned as follows:
Pin 1 – Black/Gray
Pin 2 – Yellow/Violet
Pin 3 – Yellow
Pin 4 – Blue/Gray
Pin 5 – Not Used
Pin 6 – Blue/Green
Pin 7 – Violet/Orange
Pin 8 – Red

The Left Headlight is not the same, but similar:
Pin 1 – Black/Yellow
Pin 2 – Blue/Green
Pin 3 – Black
Pin 4 – Blue/Gray
Pin 5 – Not Used
Pin 6 – Brown/Blue
Pin 7 – Gray/Brown
Pin 8 – White

FORScan:
The final piece to the puzzle is changing the BCM programming to work with the LEDs.
726-24-01 xxxx xxFF xFxx
726-26-02 xxxx xxx0 xxxx
726-27-01 x0x1 xxxx xxxx
726-27-01 x0xx xxxx xxxx (Use this if you did not add wires to the BCM)
726-29-01 xxxx xxxx x0xx
726-29-02 x0xx xxxx xxxx (2018 Trucks Only)
726-45-01 xxxx 7Fxx xxxx
726-50-01 10xx
726-50-01 08xx (Use this if you did not add wires to the BCM)



Some contents you may need when you perform FORScan:
