Ford IDS Testing on Ford Focus by VCM

This is a Ford IDS software on VCM Testing for Ford Focus.



Latest Ford IDS v107 v106 Software Free Download

Ford IDS Software Installation Guide (Original & Crack)



Ford IDS Testing on Ford Focus by VCM Video:

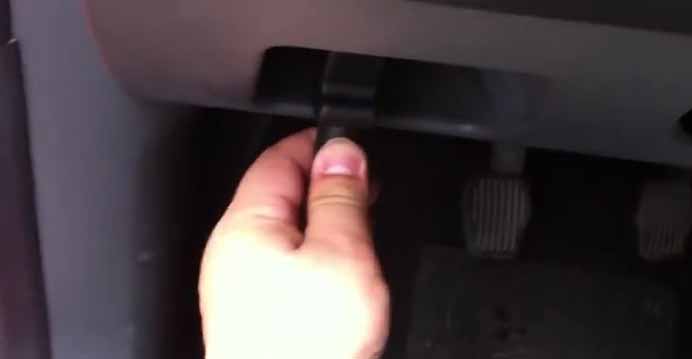

Connect your Focus OBD port to laptop USB port by Ford VCM.

Ford IDS Testing on Ford Focus by VCM (1)

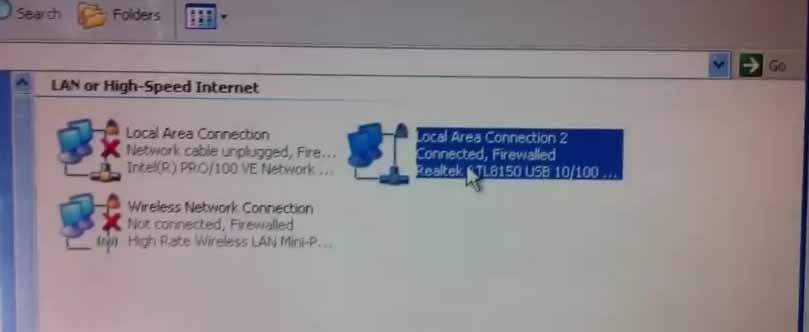

Then you can find a local connection has already build here.

Ford IDS Testing on Ford Focus by VCM (2)

Run the Ford IDS software on your desktop

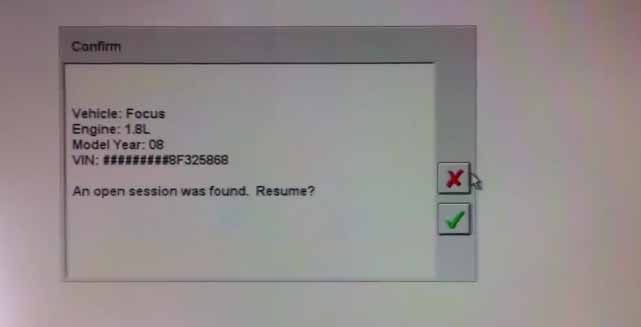

If it is your first time to tested with this device,you have to build the connection between cars and the IDS BCM device.

Ford IDS Testing on Ford Focus by VCM (3)

Here we delayed it.

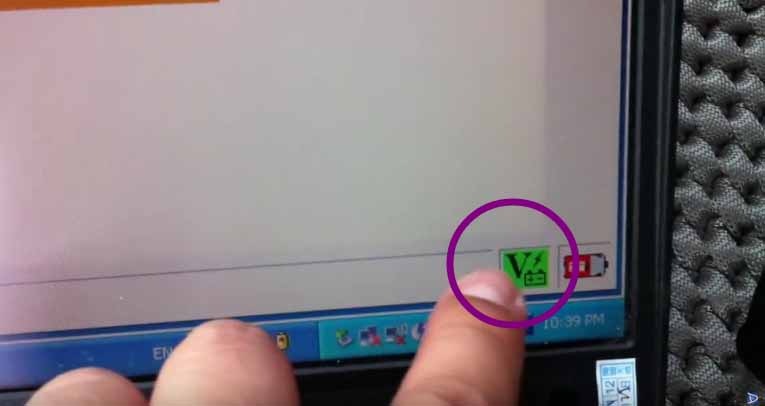

And If it you first time to use this device,you will see here at the right bottom icon to add coins.It means the engine is start.

Note:Please make sure the engine is on,this is very import!

Ford IDS Testing on Ford Focus by VCM (4)

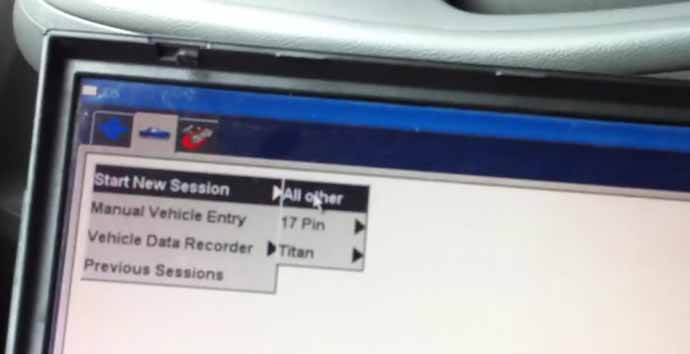

Select “Start New Session”–>Select “All other”

Ford IDS Testing on Ford Focus by VCM (5)

Choose “yes”

Ford IDS Testing on Ford Focus by VCM (6)

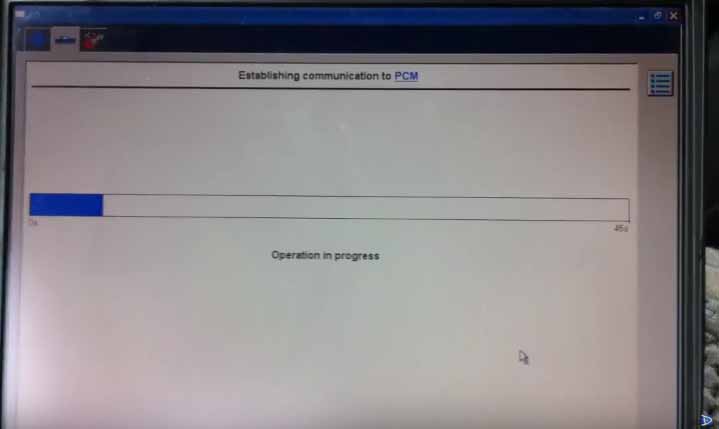

Next it will build connection to PCM

Ford IDS Testing on Ford Focus by VCM (7)

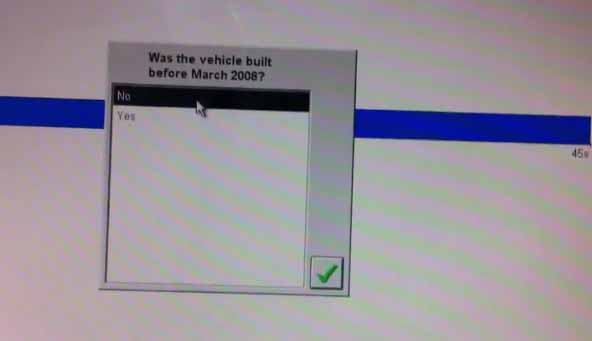

System will prompt “Was the vehicle built before March 2008”

Select “No”(According to your cars)

Ford IDS Testing on Ford Focus by VCM (8)

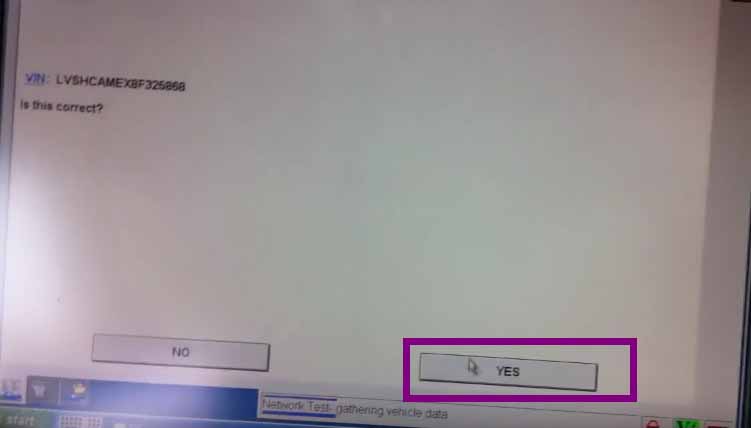

The software will show the VIN number,if it is correct,please select “Yes”

Ford IDS Testing on Ford Focus by VCM (9)

After system reading odometer info,please select “Yes”

Ford IDS Testing on Ford Focus by VCM (10)

It will show the Vehicle information as below:

Vehicle:Focus

Engine Type:DURATEC-HE/14

Capacity:1.8L

PATS:Equipped

Transmission:Manual

Ignition:Integrated EDIS in PCM

Fuel Type:Gasoline

Emission level:All other

VIN:LVSHCAMEX8F325868

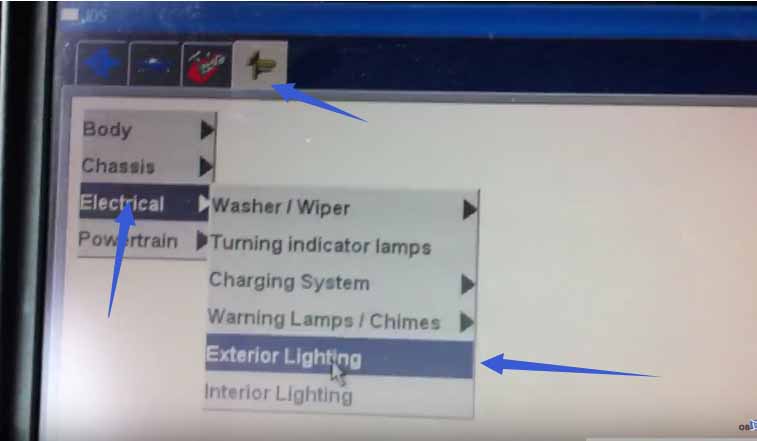

Select upper left corner icon for the further diagnosis:

ElectricalàExterior Lighting

Ford IDS Testing on Ford Focus by VCM (11)

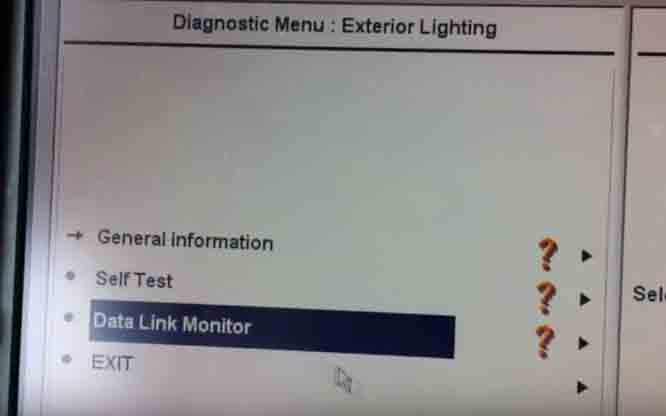

Select “Data Link Monitor”

Ford IDS Testing on Ford Focus by VCM (12)

Select “Yes”,at lower right corner

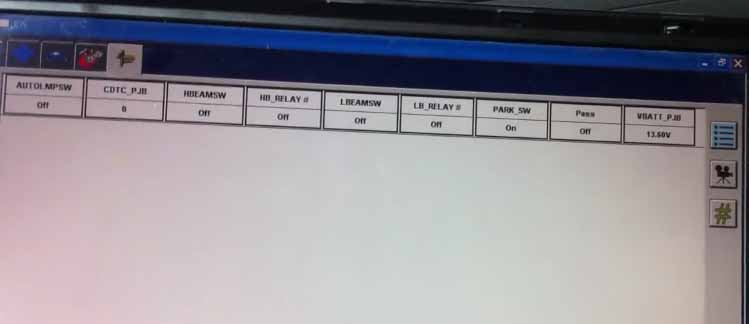

And you can see the level with your lights operations

Ford IDS Testing on Ford Focus by VCM (13)
