Honda Acura Ignition System Repair & Maintenance Guide

This instruction focus on how to repair and maintenance ignition system for Honda Acura.It main include:ignition timing inspection,ignition coil removal & installation,ignition coil relay circuit troubleshooting,spark plug inspection.



Component Location Index:



Circuit Diagram:



Ignition Timing Inspection:

1.Connect the Honda Diagnostic System ( HDS ) to the data link connector(DLC ),and check for DTC’s.If a DTC is present , diagnose and repair the cause before inspecting the ignition timing .

2.Start the engine.Hold the engine at 3,000 rpm with no Ioad ( In Neutral ) until the radiator fan comes on,then let it idle.

3.Check the idle speed

4.Select ” SCS ” mode using the HDS .

5.Remove the right side engine compartment cover

6.Connect the timing light to the service loop .

7.Aim the light toward the pointer (A)on the timing belt cover. Check the ignition timing under no load condition: headlights, blower fan rear window defogger, and air conditioner are not operating



Ignition Timing

M/T:10°±2 BTDC (RED mark(B)) at idle in Neutral

AT:10°±2° BTDC (RED mark(B) at idle in Park or Neutral



8.If the ignition timing differs from the specification,check cam timing If cam timing is oK, update the engine control module(ECMw powertrain control module(PCM)if it does not have the latest software (see page 11-6), or substitute a known-good ECM/PCM, then recheck. If the system works properly, and the ECM/PCM was substituted replace the original ECM/PCM

9.Disconnect the hDs and the timing light.



Ignition Coil Removal/Installation:

1.Remove the intake manifold cover.

2.Remove the right side engine compartment cover A), then remove the left rear engine compartment over(B)and right rear engine compartment cove (C)

3.When removing the No 6 coil you must remove the reserve tank heat shield and reserve tank

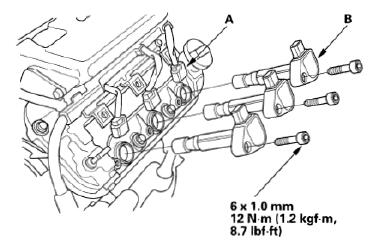

4.Disconnect the ignition coil connectors (A), then remove the ignition coils (B)

5.Install the ignition coils in the reverse order of removal.





Ignition Coil Relay Circuit Troubleshooting

1.Check the No. 2(15A) fuse in the under-dash fuse/relay box

Is the fuse OK?

YES-Go to step 2.

No- Replace the fuse



2.Remove the ignition coil relay from the under-dash fuse/relay box and test it

is the relay oK?

YES

ES- Go to step 3

No→ Replace the ignition coil relay



3.Measure the voltage between ignition coil relay 4P socket terminal No. 1 and body ground, then terminal No 4 and body ground.

Is there battery voltage?

YES-Go to step 4.

NO-Replace the under-dash fuse/relay box



4.Check for continuity between ignition coil relay 4P socket terminal No.2 and the No.1 ignition coil 3P connector terminal No.3.

Is there continuity?

YES-Go to step 5.

NO-Repair an open in the wire between ignition coil relay 4P socket terminal No.2 and ignition coil 3P connector terminal No.3.



5.Check for continuity between ignition coil relay 4P socket terminal No.3 and body ground.

Is there continuity?

YES-Repair a short in the wire between ignition coil relay 4P socket terminal No.3 and ECM/PCM.

NO-Repair an open in the wire between ignition coil relay 4P socket terminal No.3 and ECWPCM.



Spark Plug Inspection

1.Inspect the electrodes and ceramic insulator.

-Burned or worn electrodes may be caused by:

-Advanced ignition timing

-Loose spark plug

-Plug heat range too hot

-Insufficient cooling

-Fouled plug may be caused by:

-Retarded ignition timing

-Oil in combustion chamber

-Incorrect spark plug gap-Plug heat range too cold

-Excessive idling/low speed running

-Clogged air cleaner element-Deteriorated ignition coils



2.Do not adjust the gap(A) of iridium tip plugs; replace the spark plug if the gap is out of specification.

Electrode Gap Standard (New):1.0-1.1 mm (0.039-0.043 in.)



3.Replace the plug at the specified interval or if the center electrode is rounded(A). Use only the spark plugs as listed.

Spark Plugs NGK: IZFR6K-11

DENSO: SKJ20DR-M11

4.Apply a small quantity of anti-seize compound to the plug threads, and screw the plugs into the cylinder head finger-tight. Then torque them to 18 N·m(1.8kgf-m,13 lbf. ft).
