This instruction show you guide on how to dismount and mount propeller shafts for HINO L-Series trucks.
Related Contents:
2024.02 HINO Diagnostic Explorer DX3/DX2 Diagnostic Software Free Download
HINO Trucks EPC Electronic Parts Catalog 2018 2016 Free Download
Procedure Dismounting Propeller Shafts
DISCONNECT THE PROPELLER SHAFT FROM ALL OF THE CONNECTING POINTS.
• Park the vehicle on level ground, apply the parking brake and apply wheel chocks at the front or rear tires.
• Make aligning marks on all bearing positions, spline positions, shaft locations and all bearing retainers.

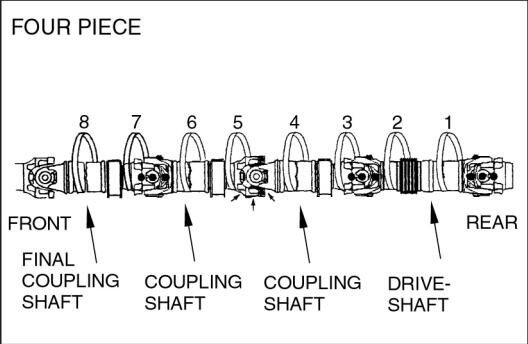

• Working from the rear end, support the propeller shaft with support straps as illustrated in Figure. Be sure to support the shaft assembly at the rear, at the slip member, behind the center bearing end fitting and in front of center bearing, with support straps.

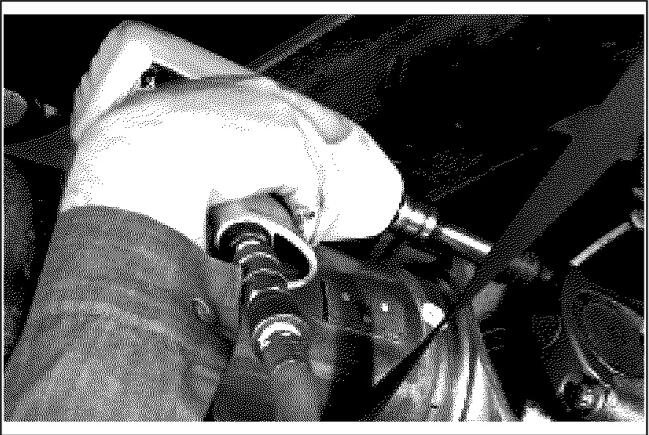

Remove the bearing retainers or stamped straps and bolts at rear end. Discard bolts. Discard stamped straps (if applicable).
WARNING
• Bearing retainers CAN be reused if there is no damage. If damaged, replace.
• DO NOT reuse bearing retainer bolts, stamped straps, stamped strap bolts, damaged bearing retainers, or use of inferior grade bolts. Reuse of bearing retainer bolts, stamped straps, stamped strap bolts, damaged bearing retainers or the use of inferior grade bolts can cause driveline failure, which can result in separation of driveline from the vehicle. A separated driveline can result in property damage, serious personal injury or death.
Procedure Mounting Propeller Shafts
CONNECT THE PROPELLER SHAFT TO ALL OF THE CONNECTING POINTS.
• Position support straps to make sure that the driveshaft will be properly supported at the slip member, behind the center bearing end fittings and in front of center bearing, with support straps.
• Working from the front end, use a soft-faced hammer to tap the universal joint into the front end yoke. Make sure to align the universal joint in the front end yoke, matching up phasing marks made during removal to ensure the driveshaft is reinstalled in its original orientation.
• Install the bearing retainers or new stamped straps and new bolts.
Torque the bolts down evenly and to required specifications. Check to make sure the bearing cup assemblies are fully seated in yoke ears.
WARNING
Improperly seated bearing cup assemblies can cause driveline failure, which can result in separation of the driveline from the vehicle. A separated driveline could result in property damage,
serious personal injury or death.
WARNING
Failure to install new stamped straps and new bolts and
to torque bolts to specification can cause driveline failure, which can result in separation of the driveline from the vehicle. A separated driveline can result in death, serious personal injury or property damage.
- Install proper center bearing bracket bolts.
WARNING
Failure to torque bolts to specification can cause driveline failure, which can result in separation of the driveline from the vehicle.
A separated driveline can result in property damage, serious personal injury or death.
