JCB JS140 Excavator P0523-68 Engine Oil Pressure Low Solution

Here car-auto-repair.com show you guide on how to repair JCB JS140 excavator P0523-68 trouble code P0523-68 engine oil pressure low error.



Related Contents:
2025 JCB ServiceMaster 4 v25.1.0 Free Download for Win 10 Win11

2017 JCB Parts Plus+ and Repair Service Manual Free Download

JCB Diagnostic tool





Possible Cause:

1 Engine oil pressure practically low.

2 Engine oil pressure sensor not connected to machine wire harness before starting to engine.

3 Low oil pressure sensor wire harness faulty.

4 Low oil pressure switch faulty.

5 Low Oil pressure switch ignition fuse blown OFF.



Diagnosis:

1 Check the oil level in the oil sump.

2 Check the wire harness connection connected with Low oil pressure switch.

JCB JS140 Excavator P0523-68 Engine Oil Pressure Low Solution (1)

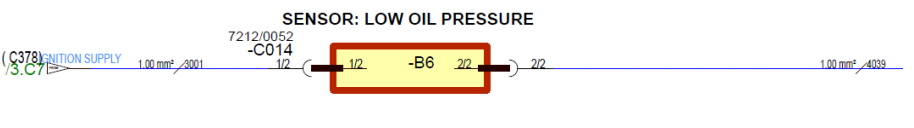

3 Low oil pressure switch wire harness connector short circuited. Check the power supply on the low oil pressure switch circuit no 4039 after disconnecting the low oil pressure switch from wire harness.

JCB JS140 Excavator P0523-68 Engine Oil Pressure Low Solution (2)

4 Check the low oil pressure switch connectivity on its terminal at ignition ON & at engine running. At engine running oil pressure switch contacts shall be OPEN not NORMALY CLOSE.

JCB JS140 Excavator P0523-68 Engine Oil Pressure Low Solution (3)

5 Check the 3A fuse on the revolver harness fuse box.

JCB JS140 Excavator P0523-68 Engine Oil Pressure Low Solution (4)



Corrective Action:

1 Top-up the engine oil if required.

2 Connect the oil pressures switch to wire harness.

3 Replace the wire harness or correct the wire harness fault.

4 Replace the pressures switch if found faulty.

5 Replace the 3A Fuse if blown OFF.
