This illustration show you guide on how to test and adjust blower motor for Kubota U48-4 and U55-4 excavator.
Preparations:
2022 Kubota Takeuchi Diagmaster v22.08.01 v4.1.2 Software Free Download
Kubota DST-i Diagnostic Adapter
Kubota EPC Spare Parts Catalogue 2021.06 Download
Procedures:
Blower motor
Connector voltage
1 Remove the blower motor’s 1P connector.
2 Switch the starter switch to [RUN] and the blower switch to [3] (HI).
3 Measure the voltage between terminal 1of the connector on the switch side and ground on the body.
4 If the voltage is different from the battery voltage (DC 11 to 14V),then there is a fault in the wire harness, blower motor relay, the fuse and/or the starter switch.
Blower motor test
1 Turn the blower motor by hand and check whether it turns smoothly.

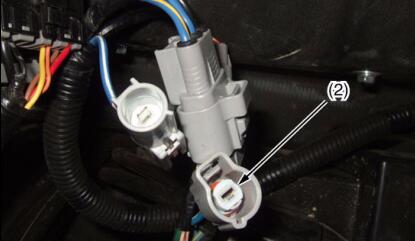

2 Remove the 2P connector from the blower motor.
3 Connect a jumper lead from the positive (+) terminal of the battery to terminal b of the connector.
4Connect a jumper lead from the negative (-) terminal of the battery to terminal e of the connector for just a moment.
5 If the blower motor fails to turn, check the motor.
