New Holland LW 130.B Wheel Loader Secondary Steering System Test

Here in this instruction show you guide on how to use digits display to do parking brake test for New Holland LW 130.B Wheel Loader.

Related Contents:

STEP 1
While testing, the machine must be on a clear level surface with the bucket in the travel position.

STEP 2
Start the machine and run the engine at low idle in third gear neutral.

STEP 3
Place the Transmission-Auto switch to the manual position.

STEP 4
Disengage the transmission cut off.

STEP 5
Place the Parking Brake switch in the ON position.

STEP 6
Shift the gear selector into third gear forward or reverse.

STEP 7

Press button P1 on the diagnostic center.

STEP 8

Press button P2 and highlight test.

STEP 9

Confirm the selection by pressing button P3 under
“OK”.

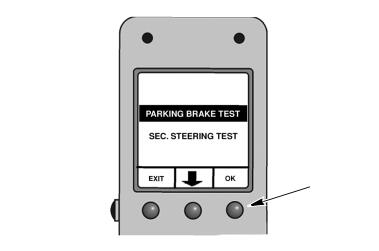

STEP 10

Confirm the test selection by pressing button P3 under “OK”.

STEP 11

Confirm the start of the test by pressing button P3 under “GO”.

STEP 12

The system performs automatically an engagement and disengagement of the parking brake.

STEP 13
Verify that the machine does not move.

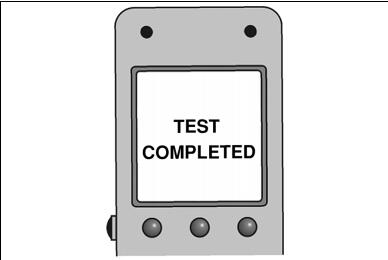

STEP 14

Display will verify completion of test.

STEP 15

The display will return to the test page menu, press button P1 to return to home page.

STEP 16
If any machine movement was detected, the parking brake must be repaired or adjusted.
