Palio 1.6 16V Magneti Marelli 1ABG – Fiat Pinout

Palio 1.6 16V Magneti Marelli 1ABG – Fiat Pinout

Main components

1. DIP memory;
2. Regulator 5 volts;

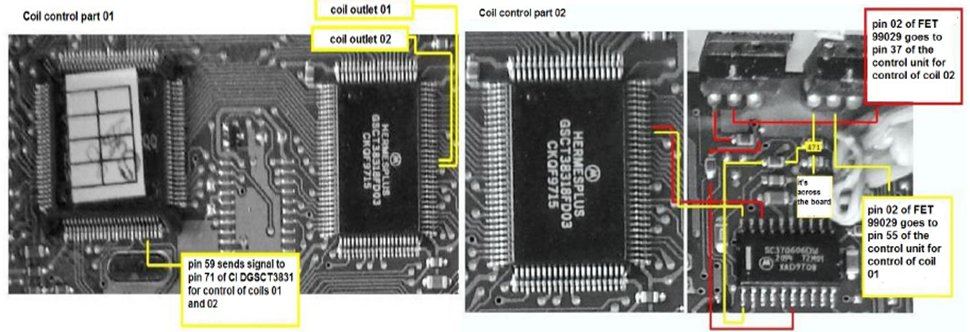

3. Coil 1 and 2;
4. Protection diode;
5. Canister;
6. Nozzles;
7. Idle actuator.

More ECU PINOUT Components:

ECU Modules Repair Pinpout & Components

Technical specifications Special features

Interchangeable with 1.6 16v brava.

Common defects

High temperature silicone oscillation and heating temperature.

Note:This car usually mechanics leave out of point and oscillates slowly and goes out.
