This instruction show you guide on how to remove and install water temperature regulator housing.
Related Contents:
Perkins EST 2024A & 2023A & 2019A Software Free Download
Perkins SPI2 2018A EPC+Service Manual Free Download
Removal Procedure
1 Drain the coolant from the cooling system into a suitable container for storage or disposal.
Refer to Operation and Maintenance Manual,“Cooling System Coolant – Change” for the correct procedure.

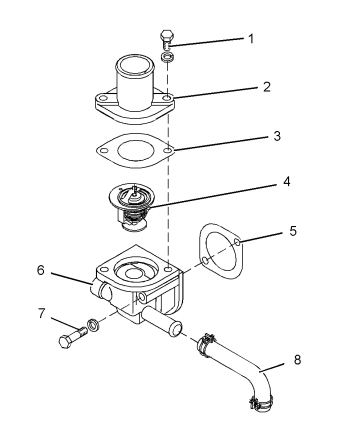

2.Remove bolts (1) and remove outlet connection (2).
3 Remove joint (3) and remove water temperature regulator (4). Note the orientation of the water temperature regulator for installation.
4 Loosen the hose clamp and disconnect hose (8) from water temperature regulator housing (6).
5 Remove bolts (7) and remove water temperature regulator housing (6) from the cylinder head.
6 Remove joint (5).
Installation Procedure
1 Inspect the water temperature regulator for wear, damage and correct operation. Refer to Systems Operation,Testing and Adjusting,“Water Temperature Regulator – Test” for more information. If necessary, replace the water temperature regulator.
2 Ensure that the mating surfaces of the outlet connection, the water temperature regulator housing and the cylinder head are clean and free from damage.
3 Position bolts (7) and a new joint (5) onto water temperature regulator housing (6).
4 Position water temperature regulator housing
(6) onto the cylinder head. Tighten bolts (7) to a torque of 18 N·m (13 lb ft).
5 Install water temperature regulator (4) to water temperature regulator housing (6). Ensure the correct orientation of the water temperature regulator.
6 Position a new joint (3) and outlet connection (2) onto water temperature regulator housing (6).
7 Install bolts (1). Tighten the bolts to 18 N·m (13 lb ft).
8 Connect hose (8) to water temperature regulator housing (6). Tighten the hose clamps securely.
9 Fill the cooling system with coolant to the correct level. Refer to Operation and Maintenance Manual, “Cooling System Coolant -Change” for the correct procedure.
