Poersche Continental SD17 ECU Clone by Launch X431 IMMO Pro

Here is an instruction show you guide on how to use Launch X431 IMMO Pro device to clone Porsche SD17 ECU.More repair cases for Porsche,please refer to Porsche Trouble Repair



Devices Used:

LAUNCH X431 IMMO (Amazon Official Shop)



Procedures:

Turn ON Launch X431 IMMO Pro device,then enter Porsche menu to select “Engine Module Replacement”

Select “Continental ECU clone”

Connect to the immobilizer programmer G3 and click “OK”

Select “Continental SD17”

Select “View the wiring diagram”

Select “With conversion board V3”

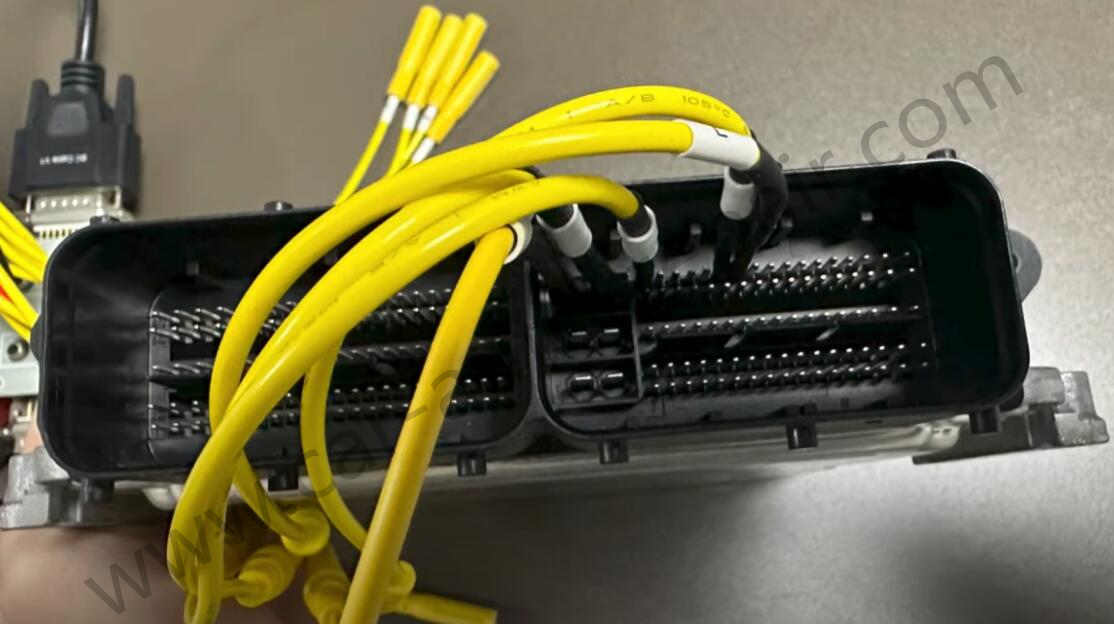

Now below show the wiring diagram,please follow it to build connection



Back to menu to press “Connect”

After connection build successfully,select “Back up EEPROM data”

Then after data reading successfully,save it on device.

Select “Back up FLASH data”,the save it on device

After paying the data of the original computer and the new computer choosed,select “Generate clone data”



Load data files,then generate clone data,wait generation successfully.



Then save EEPROM and FLASH data

Now back to menu to select “Restore EEPROM data”

Just select the EEPROM file generated to restore

Same operation to restore FLASH file

Remember to press “Disconnect” on menu.

Done.

More test report about Launch X431 please check:Launch X431 Test Report
